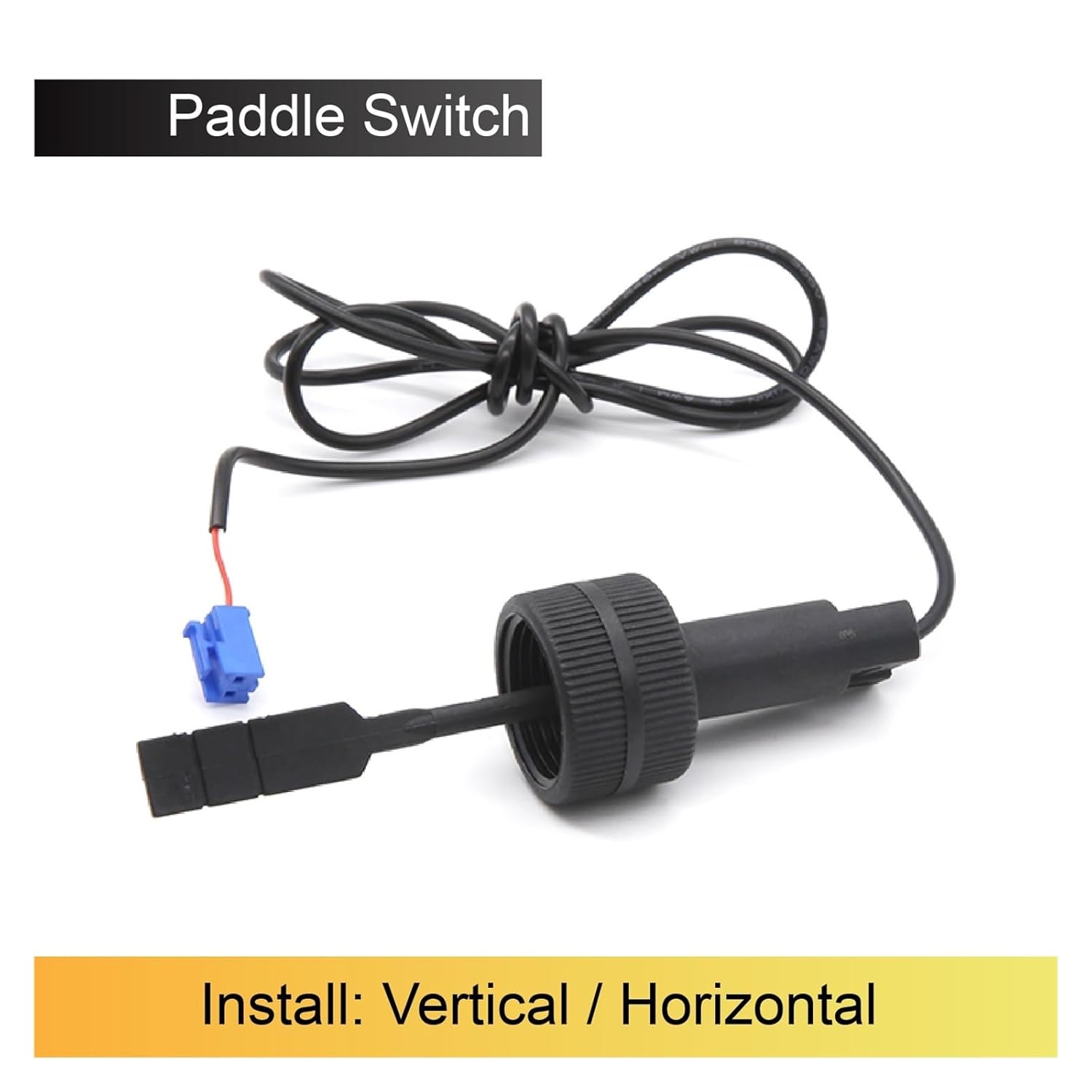

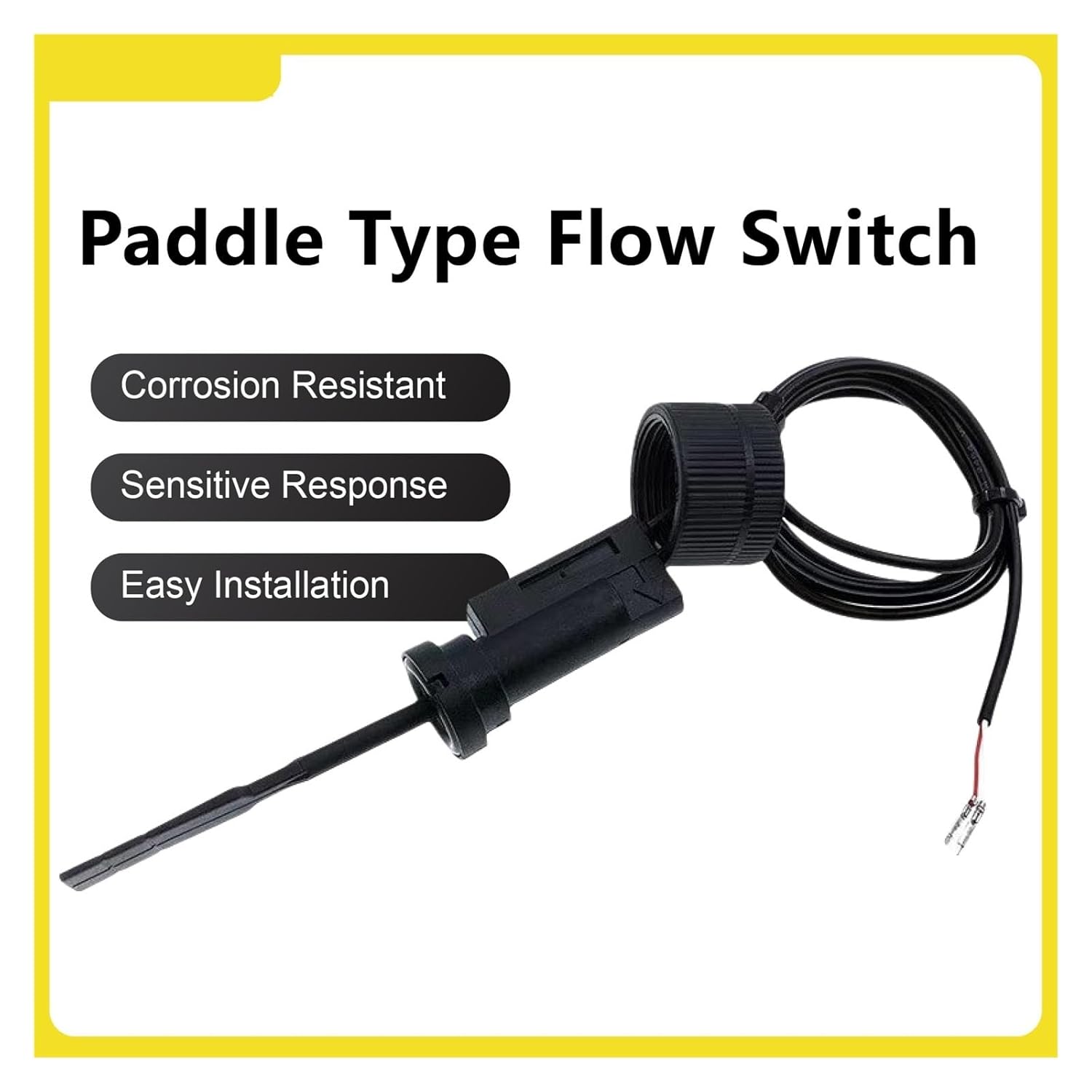

G3/4 Paddle-Type Flow Switch Ck-Jpkg Inline Water Flow Switch for Air Source Heat Pump Pool Water Heater Sensor
Product details
| Management number | 220350730 | Release Date | 2026/05/03 | List Price | US$25.22 | Model Number | 220350730 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1.NOTEDefault ParametersSpecifications:Available in free version or SM versionThread installation: G3/4Flow range: 330 L/minTemperature resistance: 20 to 80 Pressure resistance: 1.75 MPa2.ParametersSpecificationValueProduct NamePaddle Flow SwitchInstallation ThreadG3/4Housing MaterialNylon or PBTWire TypeAWG22, 300mm UL1430Mounting DirectionVertical or HorizontalContact TypeS.P.S.TLoad Current1.5ASwitching CurrentMax 0.5ASwitching Voltage100V DCPower Rating10VAFlow Setting Range0.75~3L/minSetting Accuracy±10%Max Flow Rate5~15L/min (10 PSI )Working PressureMax 300 PSIShock Resistance30gVibration Resistance35~500HzOperating Temperature0~80°CCompatible MediaClean water or other liquidsFeaturesWide Flow Detection RangeAccurately measures flow rates from 0.75 to 15 L/min, suitable for a variety of applications.Flexible InstallationDesigned for both vertical and horizontal installation, adapting easily to different piping systems.High Signal IntegrityDelivers stable output with high level 4.7V and low level 0.5V for reliable performance.Robust Electrical PerformanceResists electrical stress up to 1250V/min without breakdown or flashover.Temperature & Humidity ResilienceOperates reliably in environments from 20C to 80°C, with resistance to condensation and thermal shock.Leak-proof ConstructionSuccessfully passes 1.75MPa water pressure testing, ensuring zero leakage.DIY Supplies : ElectricalOrigin : Mainland ChinaThread installation : G3/4Flow range : 3-30 L/minTemperature resistance : -20 to 80 Pressure resistance : 1.75 MPaSwitching Voltage : 100V DC
- Aovtysa G3/4 Paddle-Type Flow Switch Ck-Jpkg Inline Water Flow Switch for Air Source Heat Pump Pool Water Heater Sensor
| Color | With-SM-Plugg |
|---|---|
| Model | Feifenmiao |
| Terminal | Blade |
| Brand Name | Aovtysa |
| Unit Count | 1.0 Count |
| Part Number | Feifenmiao |
| Switch Type | Bipolar Transistor |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | Feifenmiao |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Current Rating | 0.01 Amps |
| Operation Mode | OFF-NONE-ON |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 1 Kilovolts |
| Specification Met | UL |
| Number of Positions | 1 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| International Protection Rating | IP00 |
